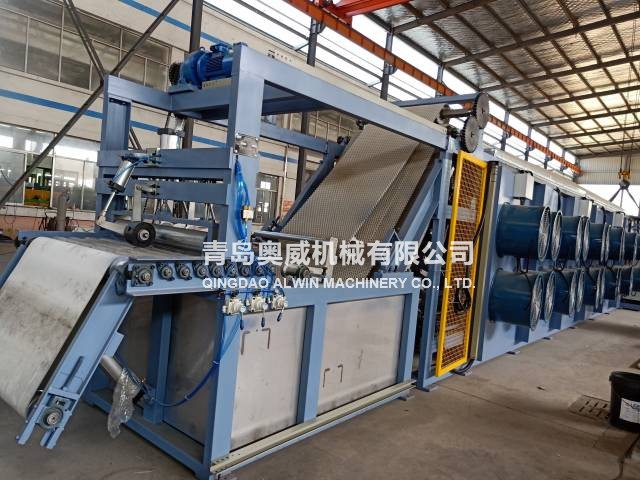

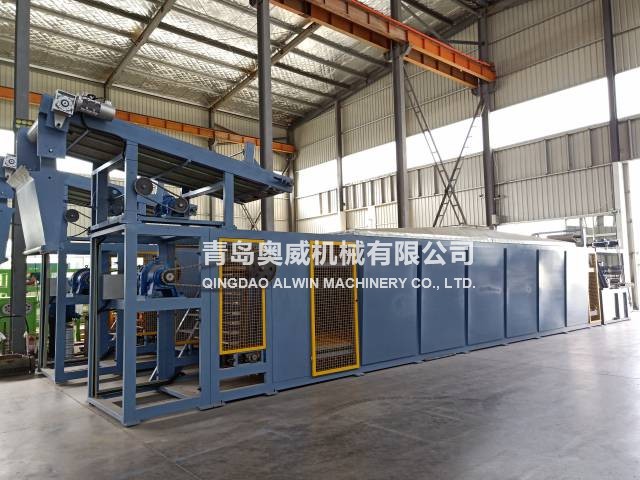

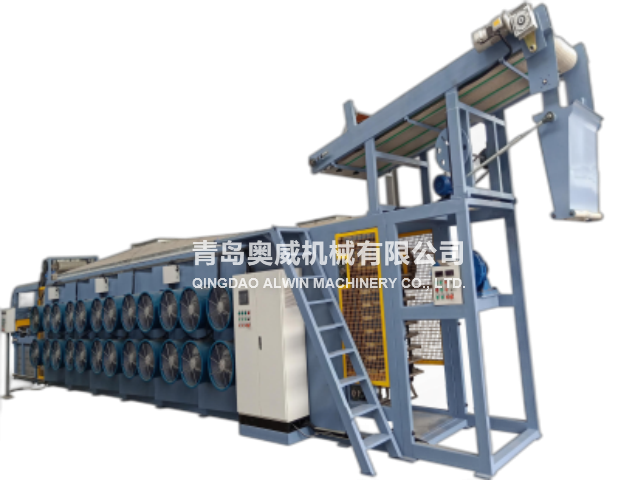

The machine can satisfy the requirement during mixing process of rubber sheet cooling,slicing and laminating,etc. Form automatic production line with internal mixer or dispersion mixer and double-cone screw automatic feeding sheeting mill or open mill to reach the effect of continuous production operation. The rubber sheet cooling mode can as per customer requirement adopt spray or immersion.
適用膠片規格 Applicable rubber sheet specification (TxW) (mm) | (4-12)x600 (900) |
電源 Power supply (V/HZ) | 380/50 |
氣源 Compressed air pressure (Mpa) | 0.4-0.8 |
接取運輸帶最大線速度 Max. Speed of picking up conveying belt (m/min) | 40 |
掛膠桿移動速度 Moving speed of hanging rubber rod (m/min) | 0.117-0.75 |
膠片最大懸掛高度 Max. height of hanging sheet (mm) | 1400 |
軸流風扇(KWXPCS) Cooling fan FTA&capacity | final mixing: 0.37x48 master batch: 0.37x60 |
擺膠最大幅度(可調) Swing sheet frequency (adjustable) (m) | 1.3 |
擺膠頻率 Swing sheet frequency (m/min) | 13 |
膠片溫度(供參考) Temperature of rubber sheet (for reference) | 環境溫度加5度 Ambient temperature+5° |
冷卻裝置減速機 Cooling reducer motor | XWD1.1-4-1/29 |
提升裝置減速機 Lift reducer motor | XWD2.2-6-1/35 |
掛膠裝置掛膠桿減速電機 Hanging rod reducer motor | XWD5.5-85-1/595 |
掛膠裝置帶接膠減速電機 Conveyor reducer motor | XWD3-5-1/23 |
下擺膠裝置減速電機 Down swing sheet reducer motor | XWD1.1-5-1/87 |
