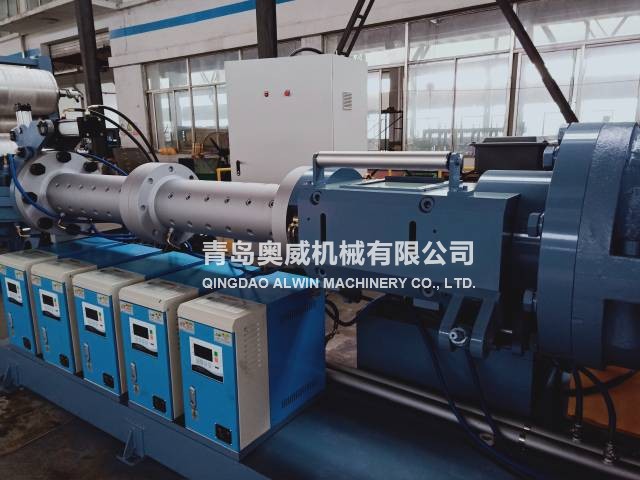

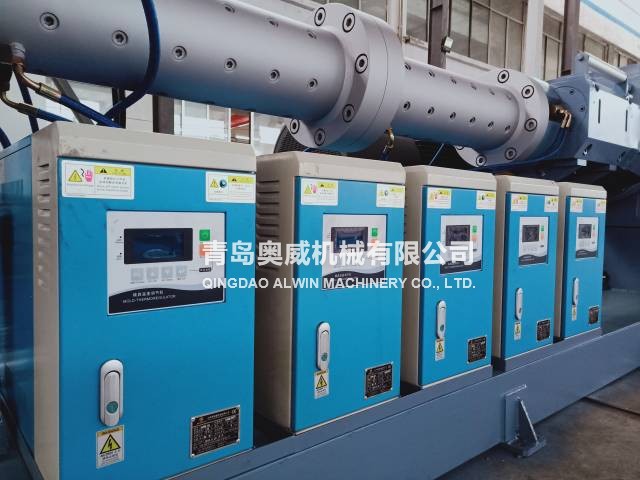

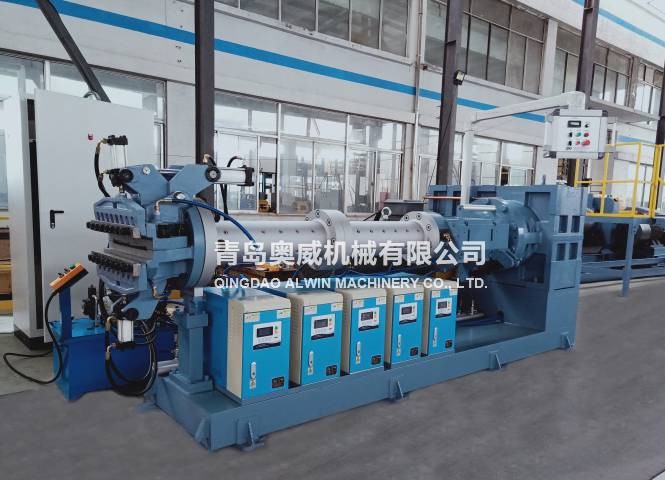

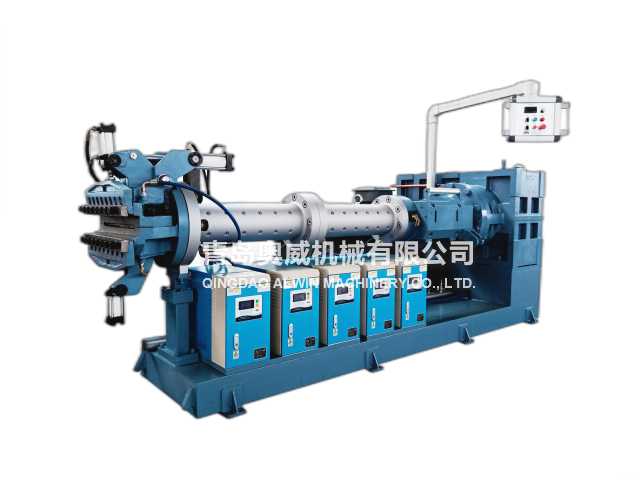

The machine has high production capacity, low rubber raw material temperature, low energy consumption, good mixing effect, even plasticizing. The machine is widely used in rubber hose, tyre tread rubber strip, inner liner, rubber seal strip etc. extruding. Also can be used to supply rubber for small size calender.
| 型號 Type | XJD-50 | XJD-65 | XJD-75 | XJD-90 | XJD-120 | XJD-150 | XJD-200 | XJD-250 | |
螺桿直徑 Screw diameter(mm) | Φ50 | Φ65 | Φ75 | Φ90 | Φ120 | Φ150 | Φ200 | Φ250 | |
螺桿長徑比 L/D ratio | 12:1 | 12:1 | 14:1 | 16:1 | 16:1 | 16:1 | 18:1 | 18:1 | |
螺桿轉速 Screw RPM | ~73 | ~80 | ~60 | ~60(55) | ~50 | ~45 | ~33 | ~26 | |
最高生產能力 Max.production capacity(kg/h) | 60 | 120 | 180 | 350 | 800 | 1500 | 2500 | 3500 | |
驅動功率 Main motor power(KW) | 11-22 | 18.5-30 | 37-45 | 47-75 | 75-110 | 160-250 | 220-355 | 355-450 | |
整機重量 Weight(t) | 1.2 | 1.6 | 2 | 3 | 5 | 5.3 | 9.8 | 15 | |
外形尺寸 Overall dimension(mm) | L | 1550 | 1900 | 2300 | 3360 | 3750 | 5200 | 7150 | 8500 |
| W | 1050 | 800 | 1150 | 1150 | 1600 | 1650 | 1950 | 2450 | |
| H | 1550 | 1500 | 1600 | 1450 | 1550 | 1600 | 2300 | 2600 | |
