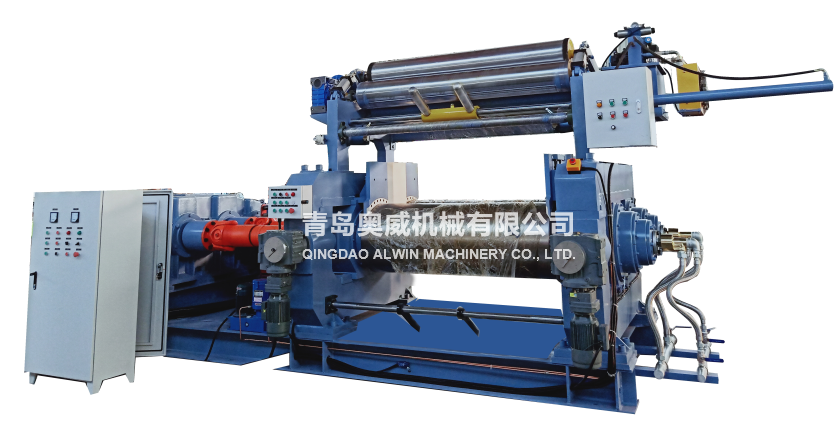

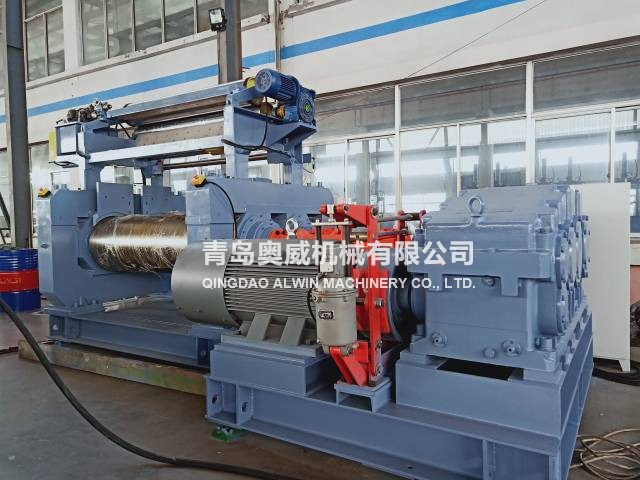

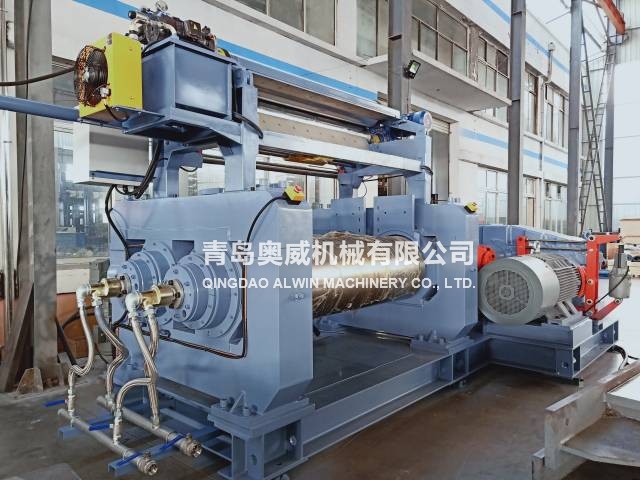

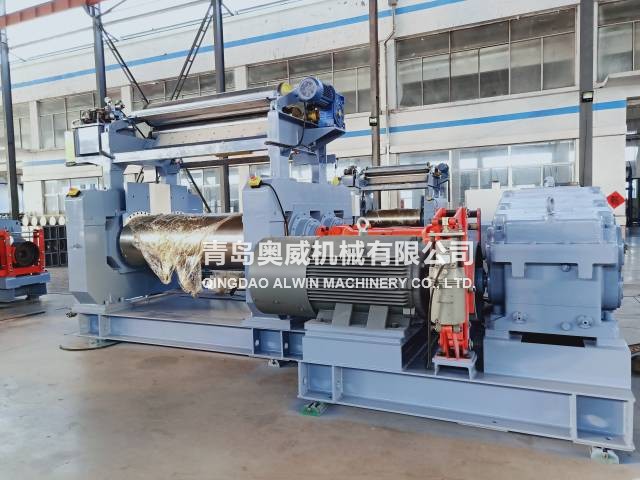

Open rubber mixing mill is mainly used for rubber heating mixing, rubber sheeting, rubber breaking, plasticating and mixing.
Open rubber mixing mill is mainly used for rubber heating mixing, rubber sheeting, rubber breaking, plasticating and mixing.
| 型號 Type | XK-230 | XK-250 | XK-300 | XK-360 | XK-400 | XK-450 | XK-560 | XK-550B | SK-660 |
輥筒工作直徑 Dia. of working rolls (mm) | 230 | 250 | 300 | 360 | 400 | 450 | 560/510 | 550 | 660 |
輥筒工作長度 Length of working rolls (mm) | 600 | 620 | 750 | 900 | 1000 | 1200 | 1530 | 1500 | 2130 |
前輥線速度 Line speed of front roll (m/min) | 10.21 | 14.1 | 15.1 | 16.25 | 18.65 | 24.26 | 27.72 | 27.94 | 28.6 |
輥筒速比 Speed ratio of rolls | 1:1.19 | 1:1.17 | 1:1.25 | 1:1.25 | 1:1.27 | 1:1.27 | 1:1.2 | 1:1.22 | 1:1.24 |
最大輥距 Max. roller spacing (mm) | 7 | 8 | 10 | 10 | 10 | 15 | 15 | 15 | 15 |
一次加膠量 Capacity of rubber per batch (kg) | 6-10 | 8-15 | 15-20 | 20-25 | 18-35 | 25-50 | 35-50 | 50-60 | 165 |
驅(qū)動電機功率 Driving motor power (kw) | 15 | 18.5 | 22 | 30 | 37 | 55 | 90 | 110 | 245 |
外形尺寸 Overall dim. (LxWxH)(mm) | 2800 1200 1120 | 3400 1500 1120 | 3450 1500 1500 | 3780 1850 1750 | 4350 1850 1785 | 5200 2380 1840 | 5480 2284 1978 | 5870 2284 1978 | 7465 3662 2080 |
