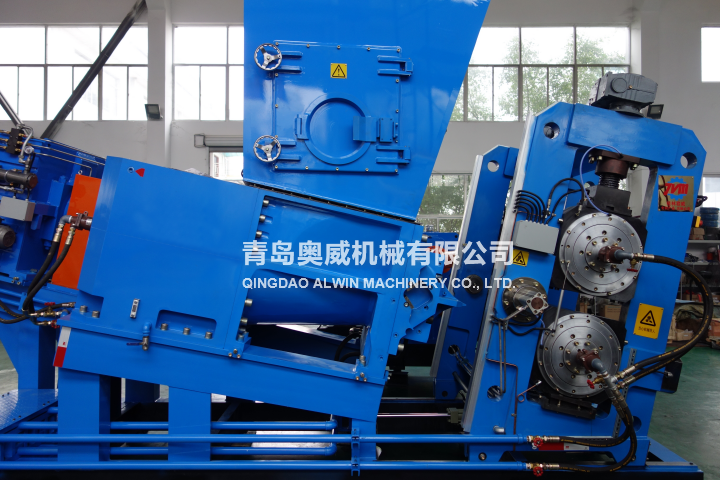

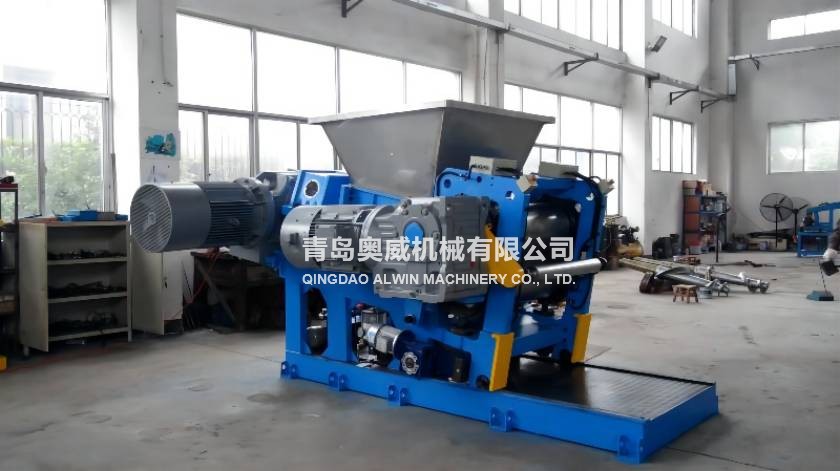

Rubber sheet dual-screw extruder and rubber banbury mixer are used, the rubber banbury mixer discharged in batches of the rubber sheet dual-screw extruder into continuous film.
Rubber sheet dual-screw extruder and rubber banbury mixer are used, the rubber banbury mixer discharged in batches of the rubber sheet dual-screw extruder into continuous film.
| 型號 Model | XJY-SZ602×250 | XJY-SZ743×330 | XJY-SZ936×416 |
螺桿形狀 Shape of screw | 變距變深錐形 Variable pitch and depth,conical | 變距變深錐形 Variable pitch and depth,conical | 變距變深錐形 Variable pitch and depth,conical |
螺桿數量 Quantity of screw (根 Pcs) | 2 | 2 | 2 |
螺桿中心線排列 Arrange of screw central-line | 帶角度 With angle | 帶角度 With angle | 帶角度 With angle |
螺桿直徑 Diameter of screw(mm) | φ602×φ250 | φ743×φ330 | φ936×φ416 |
螺桿轉速 Speed of screw(R/min) | 2.2~22 | 2.2~22 | 2.2~22 |
擠出電機功率 Extruding motor power(KW) | 90 | 160 | 220 |
壓片輥尺寸（D×L) Size of roll(mm) | φ400×800 | φ450×1000 | φ508×1070 |
壓片輥轉速 Speed of sheeting roll(R/min) | 2.5~2.5 | 3.2~3.2 | 3~30 |
輥筒工作調距間隙 Range of rolls nip adjusting(mm) | 3~10 | 3~10 | 3~10 |
調距電機功率 Power of rolls adjusting motor(KW) | 四級 4grade P=2 二級 2grade P=2.4 | 四級 4grade P=2 二級 2grade P=4 | 四級 4grade P=3.3 二級 2grade P=4 |
機頭擋膠板距離 Distance between guides(mm) | 550 | 600(650、700、750） | 700（750、800、850） |
壓片電機功率 Motor of roller-die(KW) | 110 | 160 | 220 |
加料形狀 Feeding method | 自重 Dead weight | 自重 Dead weight | 自重 Dead weight |
加料口形狀 Shape of feeding trough | 梯形 Trapezium | 梯形 Trapezium | 梯形 Trapezium |
平均生產能力 Average capacity(T/H) | 6 | 9 | 11 |
冷卻水耗量 Consumption of cooling water(M3/H) | -30 | 35~45 | 38~50 |
外形尺寸（長×寬×高） Dimensions(L×W×H)(mm) | 4570×4320×2720 | 4850×5300×2560 | 5460×5800×3400 |
約重（主電機除外） Gross weight(Excluding main motor)(T) | ~25 | ~30 | ~44 |
配套密煉機型號 Mathched internal mixer model | F160、GK160 | F270、BB270、GK250、PN270 | F370、BB370、GK400、PN420 |
